201–239 MW
simple cycle output
>60%
combined-cycle efficiency
11-minute
GT start-up time
Up to 65%
hydrogen capability
A heritage of quality
GE Vernova 7F features and benefits
GE Vernova was proud to celebrate the 30-year anniversary of the 7F gas turbine in 2019. The 7F technology is core to GE Vernova's Gas Power portfolio of products and services. Its installed base of approximately 950 units is a testament to the engine’s success and customers’ trust to partner with GE Vernova to achieve high performance and operational reliability.
Unmatched flexibility: 7F.04 and 7F.05
In terms of fuel flexibility, the 7F.04 gas turbine is the only turbine in its class to burn Arabian Super Light (ASL), 15% C2, +20/-10% Modified Wobbe Index (MWI).
A simple-cycle 7F.05 gas turbine can reliably produce 200 MW within 10 minutes, and can reach full load in under 11 minutes. A 7F.05 can also balance renewables by load-following at 40 MW/min ramp rates while maintaining emissions compliance.
Enhancing customer value
The 7F.05’s improved maintenance practices, combined with features like field removal compressor airfoils means it can reduce replacement time, downtime, and costs.
The 7F.04 features an enhanced compressor and hot gas path cooling and sealing technologies, improving both performance and durability.

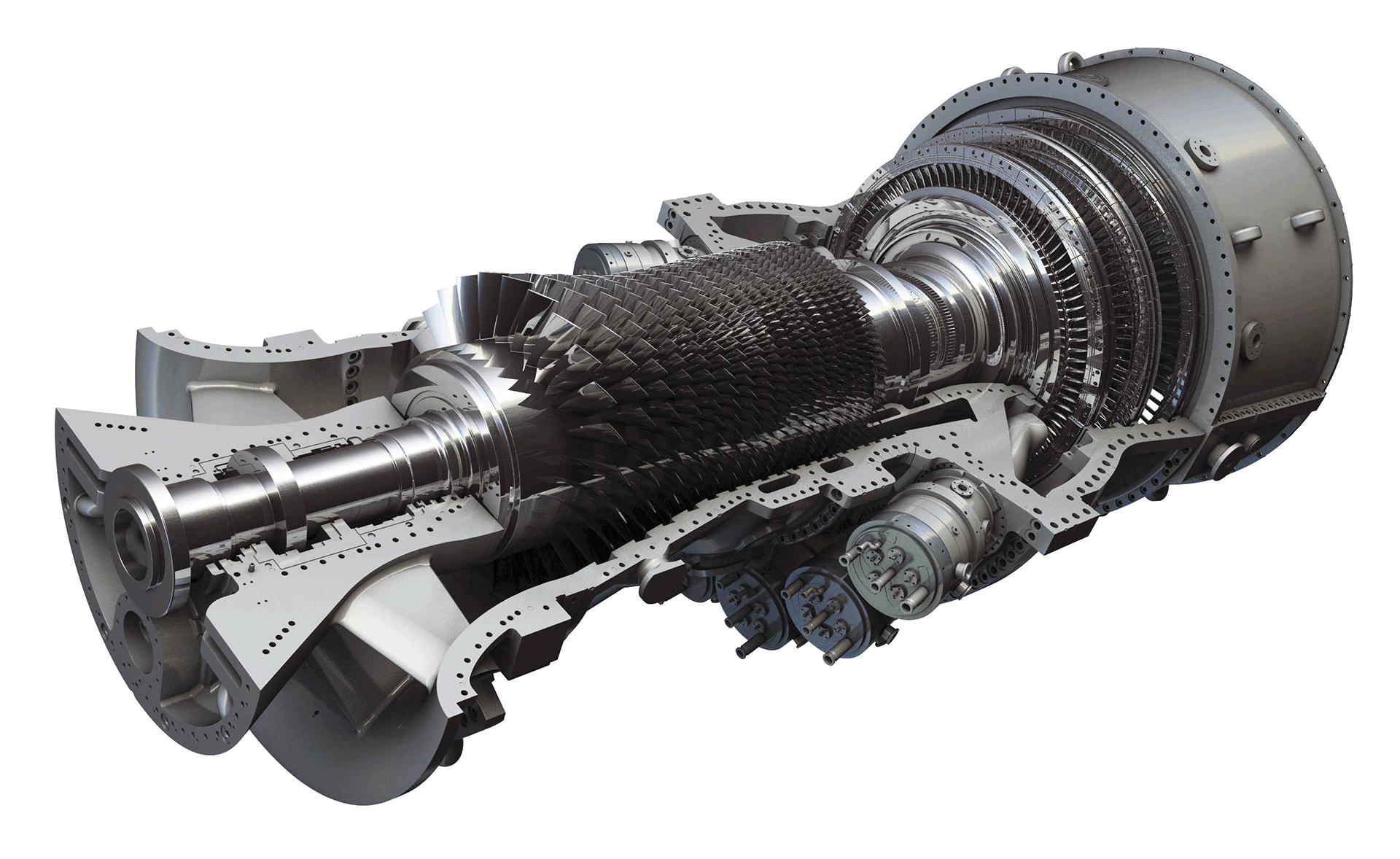

An industry pioneer
GE Vernova's F-class gas turbines were among the first to achieve 50 million operating hours, 1 million starts, single-digit NOx emissions, a firing temperature greater than 2,400˚F, and operation with Arabian Super Light (ASL) as a fuel.
Other 7F turbine features and benefits
- 3D aerodynamic hot gas path for enhanced performance
- 18-stage enhanced compressor for improved performance, maintainability, and operability (14-stage for the 7F.05 gas turbine)
- Low fuel pressure requirements that reduce need for on-site fuel compressor
- Industry-leading Dry Low NOx 2.6 combustion system lowers emissions, offers flexibility on a wide range of natural gas or distillate fuel
- Upgradable liquid fuel systems for greater reliability, efficiency, and safety
- Can be fitted with our Live Outage service, a digitized platform to help create a better outage experience.
Webinar
Unlocking technology: How to utilize predictive and prescriptive analytics
Are you struggling with aging equipment and high maintenance costs? Discover how GE Vernova's predictive and prescriptive analytics can help reduce unplanned downtime and enhance availability, while shifting you from reactive to proactive maintenance strategies.
Tom Freeman
Chief Customer Consultant, GE Vernova
Ben Myers
Global Monitoring & Diagnostics Leader, GE Vernova
Truman Hwang
Product Manager, GE Vernova
Janet Webb
Senior Product Manager, GE Vernova
Specifications

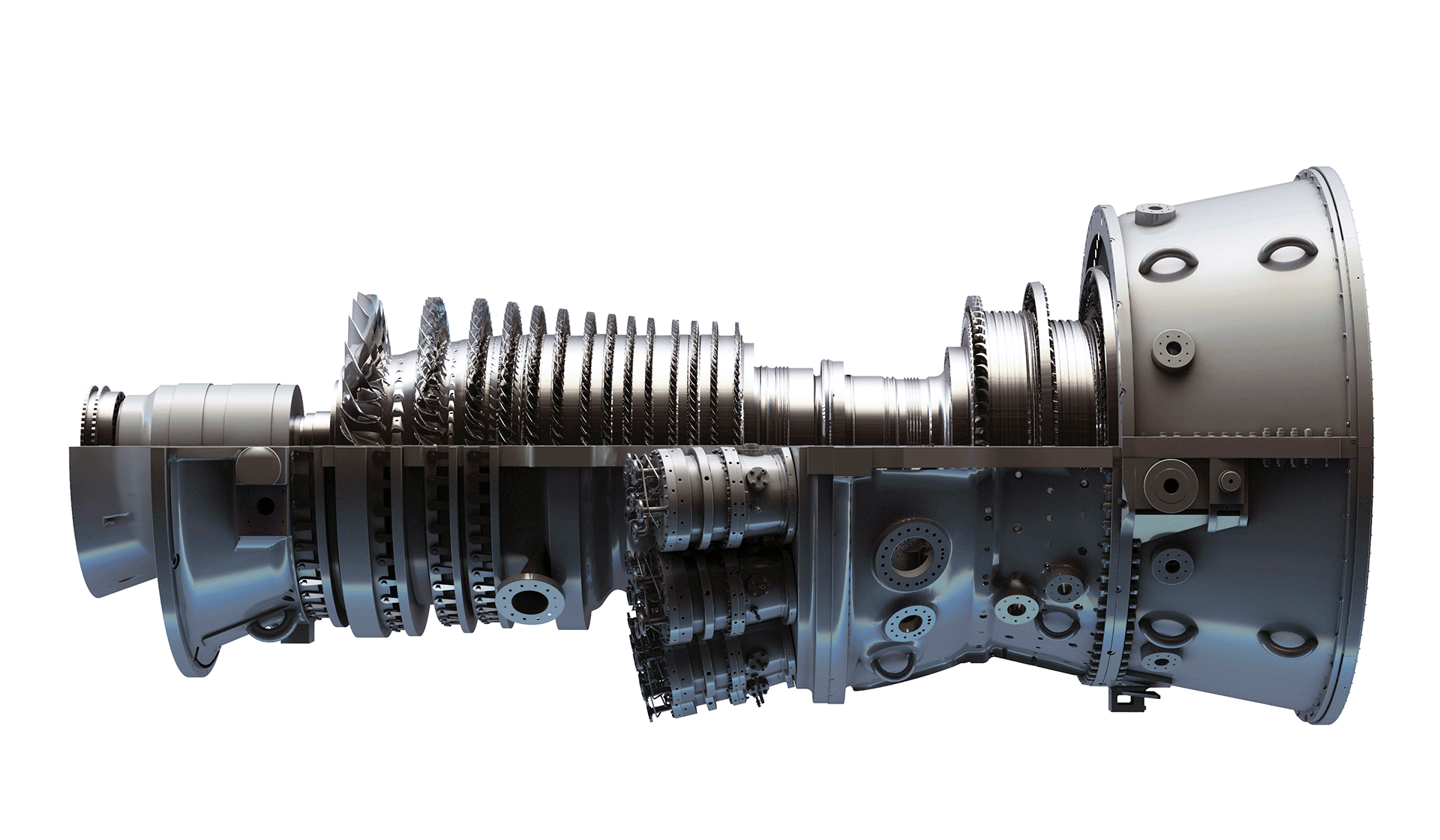

7F technical specifications
Take a closer look at our 7F gas turbine.
Specifications shown are 60 Hz
| 7F.04 | 7F.05 | |
|---|---|---|
| Net output (MW) | 201 | 239 |
| Net heat rate (Btu/kWh, LHV) | 8873 | 8871 |
| Net heat rate (kJ/kWh, LHV) | 9362 | 9359 |
| Net efficiency (%, LHV) | 38.5% | 38.5% |
| Ramp Rate (MW/minute) | 30 | 40 |
| Startup Time (RR Hot, Minutes) | 21 | 21 |
7F series gas turbines can balance renewables by load-following at 40 MW/min ramp rates while maintaining emissions compliance.
NOTE: All ratings are based on ISO conditions and natural gas fuel. Actual performance will vary with project-specific conditions and fuel.
Customer stories
-
Helping to decarbonize Alberta—in some wild weather
-
Leveraging decades of expertise and dedication
-
Helping to decarbonize Alberta—in some wild weather
-
Leveraging decades of expertise and dedication
Helping to decarbonize Alberta—in some wild weather
GE Vernova and Maxim Power worked together to install and upgrade a 7F gas turbine in a year-round project that helped support Canada’s coal-to-gas transition. For this project, GE Vernova provided relocation support with a DLN2.6+ upgrade and secured a contractual services agreement for the GE Vernova 7F.05 gas turbine.
208,000
equivalent Canadian households powered
reduction in emissions from coal to natural gas
"GE helped us solve our most pressing power generation challenges, such as the upgrade and maintenance of a GE gas turbine that we purchased from a third party and sat in storage, unused, for eight years near a copper mine in the Northern part of the United States. We know that GE has the level of experience needed to deliver reliable and sustainable power under any condition."
Bob Emmott
President and Chief Operating Officer, Maxim Power
Leveraging decades of expertise and dedication
Just in time for the 7F gas turbine’s 30th anniversary, GE Vernova announced a new plant in Mexico coming online, ready to meet the country’s growing electricity needs. The 907 MW Norte III combined cycle power plant uses four GE Vernova 7F.04 gas turbines and will be operated and maintained by GE Vernova for the next 25 years.
500,000
households powered (equivalent electricity)
7F gas turbine efficiency
"We chose GE to collaborate with us on the Norte III plant because of its reliable technology and total plant-service solutions. We believe this important project will allow the consortium to leverage our collective global expertise in infrastructure, energy and project financing to support the expected growth in the Chihuahua region."
Alejandro Maluf
CEO, Techint North America
