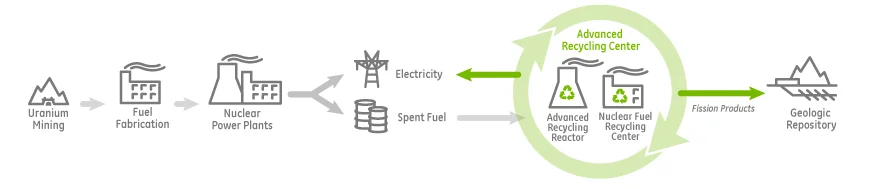

PRISM is a high energy neutron (fast) reactor which uses a series of proven, safe and mature technologies to create an innovative solution to dispose of used nuclear fuel and surplus plutonium.

GE and Hitachi have a legacy of building nuclear plants safely for more than 60 years. Our record of innovation generating clean energy by using proven technologies has been unsurpassed. R&D has always been at the heart of our nuclear business and something that we are carrying forward into the future.

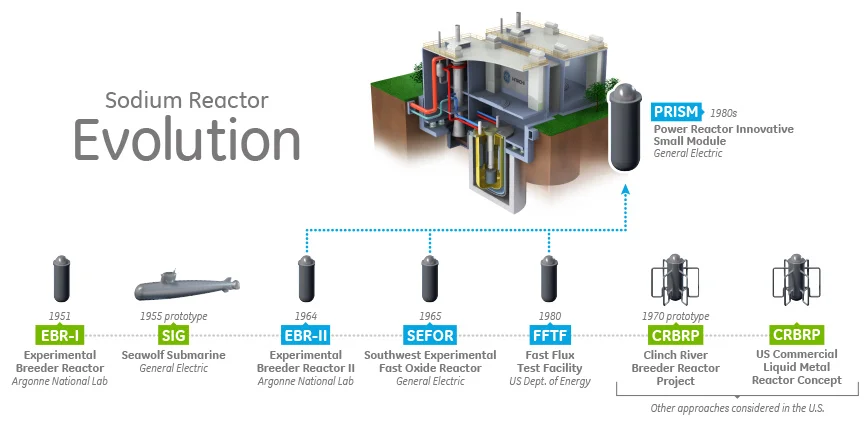

From GE’s founding innovation, Thomas Edison’s light bulb, to developing the first civil nuclear power plant connected to a commercial power grid in 1957; everything that we have learned from 130 years of experience has helped GEH to create PRISM. We believe that innovation often comes by taking existing technologies to create something new. And that is exactly what GEH has done to create PRISM, building on the EBR-II reactor, which operated successfully for 30 years.

The PRISM reactor builds on this sodium-cooled reactor experience first pioneered in 1951 to turn the binding energy of the atom into electrical energy. PRISM incorporates a number of innovative features which make it the ideal vehicle for addressing used nuclear fuel and dispositioning plutonium. In addition, PRISM’s simplified design allows factory fabrication with modular construction and ultimately lower costs… all while generating clean electricity.

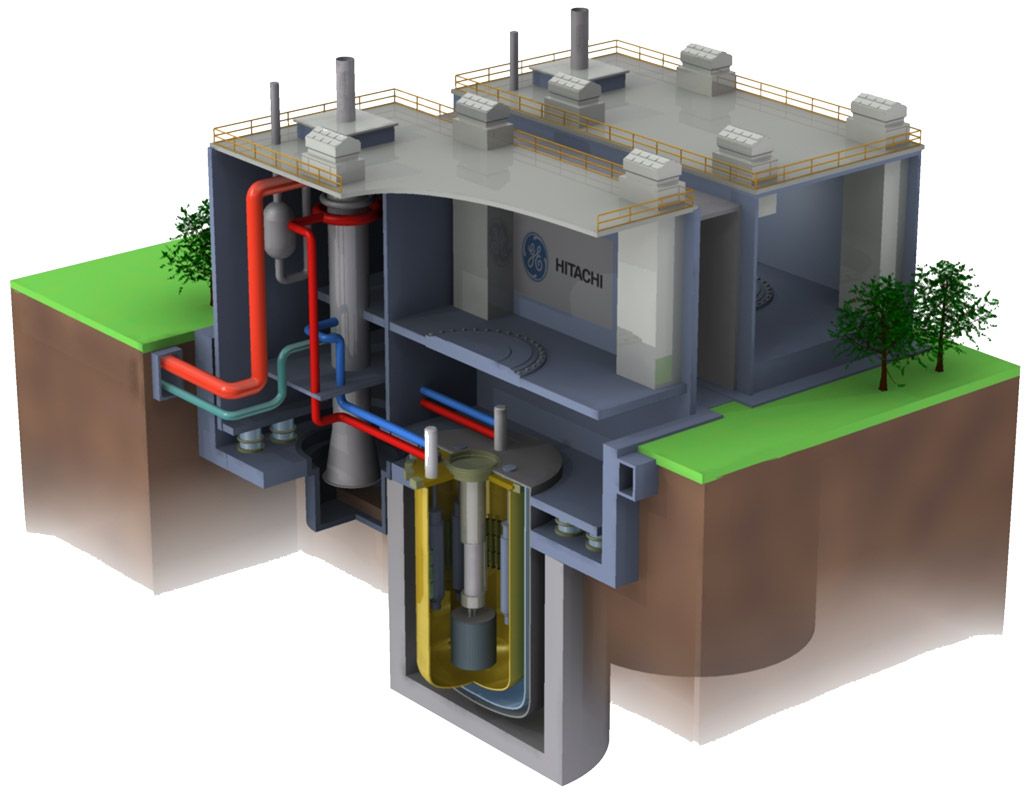

The PRISM Reactor

PRISM is a pool-type, metal-fueled, small modular Sodium Fast Reactor. PRISM employs passive safety, digital instrumentation and control, and modular fabrication techniques to expedite plant construction. A PRISM has a rated thermal power of 840 MW and an electrical output of 311 MW. Two PRISM reactors make up a power block that combined produce 622 MW of electrical output.

Each PRISM reactor has an intermediate sodium loop that exchanges heat between the primary sodium coolant from the core with water/steam in a sodium/water steam generator. The steam from the sodium-water steam generator feeds an advanced steam turbine.

Unique Safety Features of PRISM

Unlike the current generation of light-water nuclear reactors, PRISM uses metallic fuel, such as an alloy of zirconium, uranium, and plutonium, and PRISM’s fuel rods sit in a bath of a liquid metal – sodium – at atmospheric pressure, which ensures that the transfer of heat from the metal fuel to the liquid sodium coolant is extremely efficient.

The PRISM Reactor Vessel Auxiliary Cooling System (RVACS) has the capability to maintain reactor temperatures well below design limits using natural circulation to remove heat from the reactor module. Unlike most other reactors, air flowing naturally around the lower containment vessel is all that is needed to keep the reactor fuel cool at all times. The system is always operating and removing heat from the reactor module, thereby providing positive indication this system is working.

In the event of a worst-case-scenario accident, the metallic core expands as the temperature rises, and its density decreases slowing the fission reaction. The reactor simply shuts itself down. PRISM’s very conductive metal fuel and metal coolant then readily dissipates excess heat through RVACS without damaging any of its components. This is what is described as “passive safety” a design feature that relies upon the laws of physics, instead of human, electronic or mechanical intervention, to mitigate the risk of an accident.
